SFP+ (CDR)-10G-15-40K-D(I)
10Gb/s 1550nm SFP+ 40kmTransceiver with/without CDR
Product Description

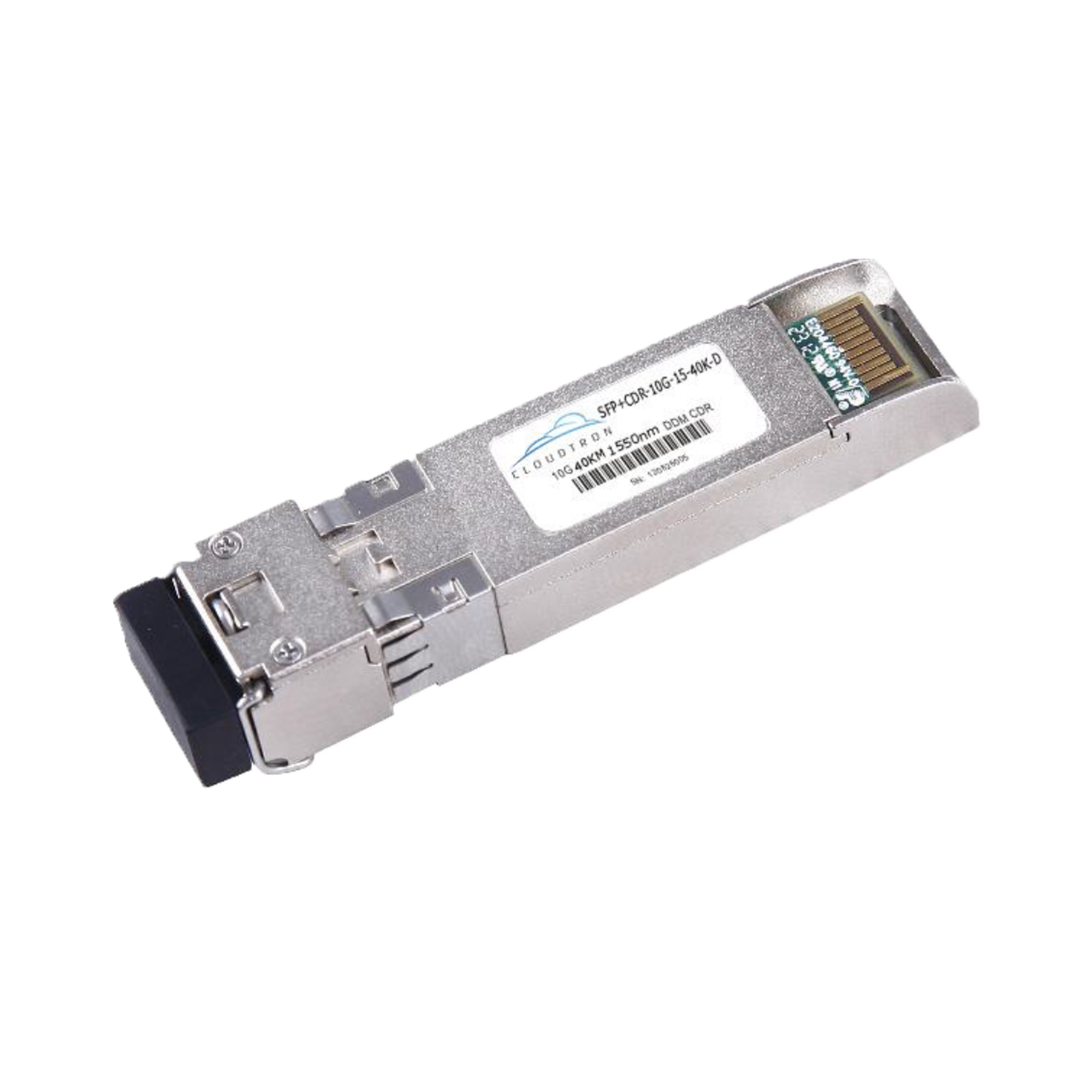

Cloudtron SFP+(CDR)-10G-15-40K-D(I) serial SFP+ transceiver is designed for use in 10-Gigabit Ethernet links up to 40km over single mode fibre. The module consists of 1550 EML Laser, InGaAs PIN and Preamplifier in a high-integrated optical sub-assembly. Digital diagnostics functions are available via a 2-wire serial interface, as specified in SFF-8472. The module data link up to 40km in 9/125um single mode fibre.
Product Features
- Up to 11.3Gbps Data Links
- Up to 40km transmission on SMF
- EML transmitter and PIN receiver
- Metal enclosure for lower EMI
- 2-wire interface with integrated Digital Diagnostic monitoring
- Hot-pluggable SFP+ footprint
- Specifications compliant with SFF-8472
- Compliant with SFP+ MSA with LC connector
- Single 3.3V power supply
- Commercial/Industrial case operating temperature range: 0°C to 70°C /-40°C to 85°C
- Without CDR or with CDR supported 9.95 to 11.3Gb/s reference-free
- Low power dissipation：
- SFP+10G-15-40K-D: 1.2W power dissipation without CDR for Commercial temperature
- SFP+10G-15-40K-DI: 1.4W power dissipation without CDR for Industrial temperature
- SFP+CDR-10G-15-40K-D: 1.3W power dissipation with CDR for Commercial temperature
- SFP+CDR-10G-15-40K-DI: 1.5W power dissipation with CDR for Industrial temperature
Applications
- 10GBASE-ER/EW & 10G Ethernet
- 10G SONET/SDH, OTU2/2e
Standard
- Compliant to SFF-8431
- Compliant to SFF 8472
- RoHS Compliant
Ordering Information
Product Part Number
Media
Wavelength (nm)
Transmission Distance (km)
Temperature Range (Tcase) (°C)
With/Without CDR
SFP+ 10G-15-40K-D
Single mode fibre
1550
40
0~70
Without CDR
SFP+ 10G-15-40K-DI
Single mode fibre
1550
40
-40~85
Without CDR
SFP+CDR-10G-15-40K-D
Single mode fibre
1550
40
0~70
With CDR
SFP+CDR-10G-15-40K-DI
Single mode fibre
1550
40
-40~85
With CDR
