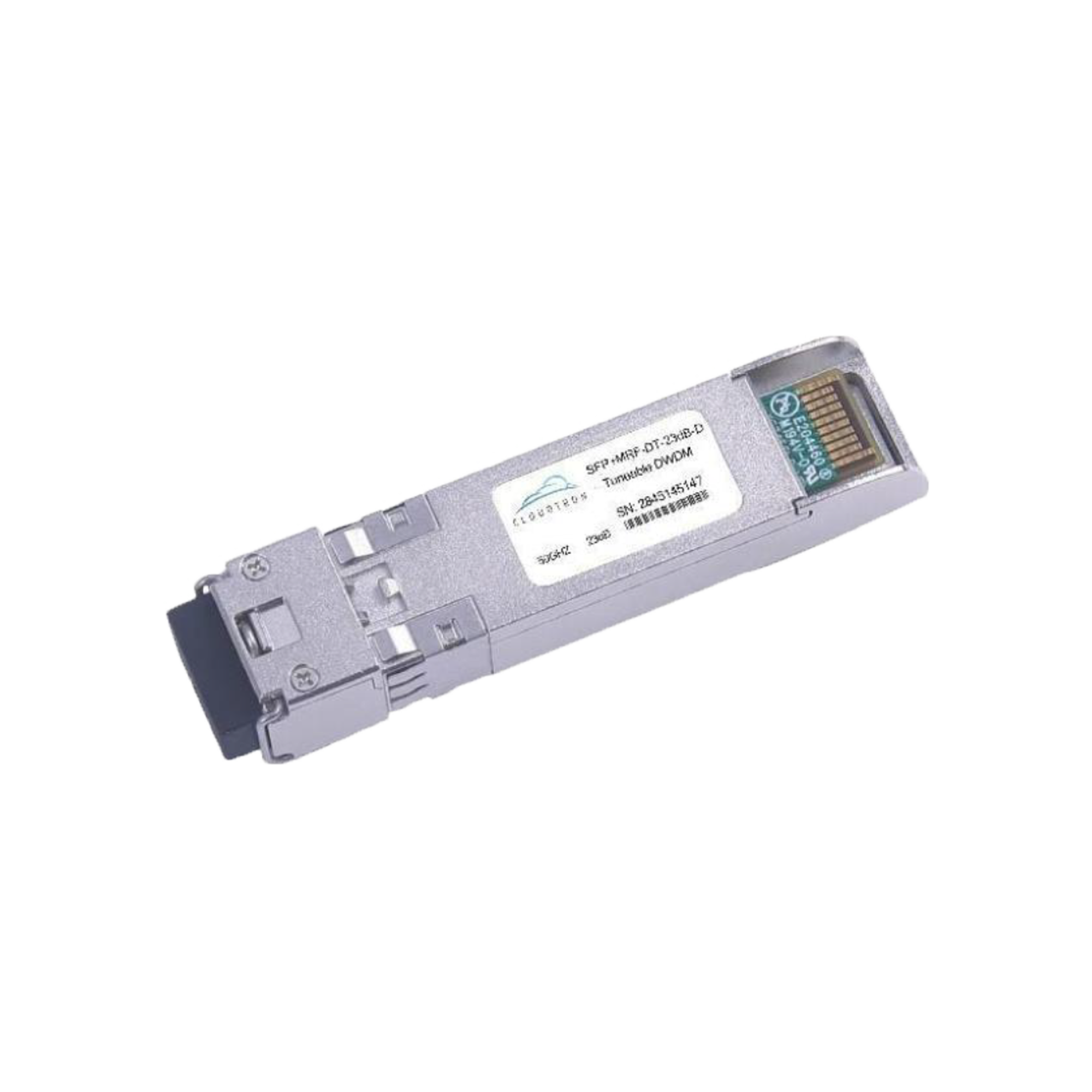

10Gb/s Tuneable DWDM SFP+ 80km Transceiver

Product Selection

The Cloudtron 10 Gb/s SFP+ tuneable transceiver is an integrated fibre optic transceiver that  provides a high-speed serial link at signalling rates from up to 11.3 Gb/s. The module complies with  the 10 Gigabit Enhanced Small Form Factor Pluggable (SFP+) multisource agreement-MSA (SFF-8431)  and SFF-8432, SFF-8690 and SFF-8472. It complies with the ITU-T G.698.1 standard with 50 GHz  channel spacing for SONET/SDH, IEEE DWDM 10GBASE-ZR for 80 km reach (Ethernet), and DWDM  10GFC for 80 km reach (Fibre Channel) applications.

The transceiver integrates the receiver and transmitter path on one module. The transceiver contains a C-band-tuneable integrated Mach-Zehnder (MZ) laser, enabling data transmission over single-mode fibre through an industry-standard LC connector. On the receiver side, the 10 Gbps data  stream is recovered from an APD/ trans-impedance amplifier, and passed to an output driver. This module features a hot-pluggable electrical interface.

Product Features

  •  Supports up to 11.3Gb/s bit rates
  • Monolithically integrated full C-band tuneable transmitter and APD receiver
  • 50 GHz ITU channel spacing with integrated wavelength locker
  • Maximum link length of 80km
  • Metal enclosure, for lower EMI
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • Hot-pluggable SFP+ footprint
  • Specifications compliant with SFF-8472 V11.3& SFF-8690 V1.4
  • Compliant with SFP+ MSA with LC connector
  • Power dissipation <1.65W
  • Case temperature range: -5°C to 70°C


  • DWDM 10GBASE-ZR/ZW 10G Ethernet
  • DWDM 80KM 10G Fibre Channel
