1000BASE-T Copper SFP Transceiver

Product Description

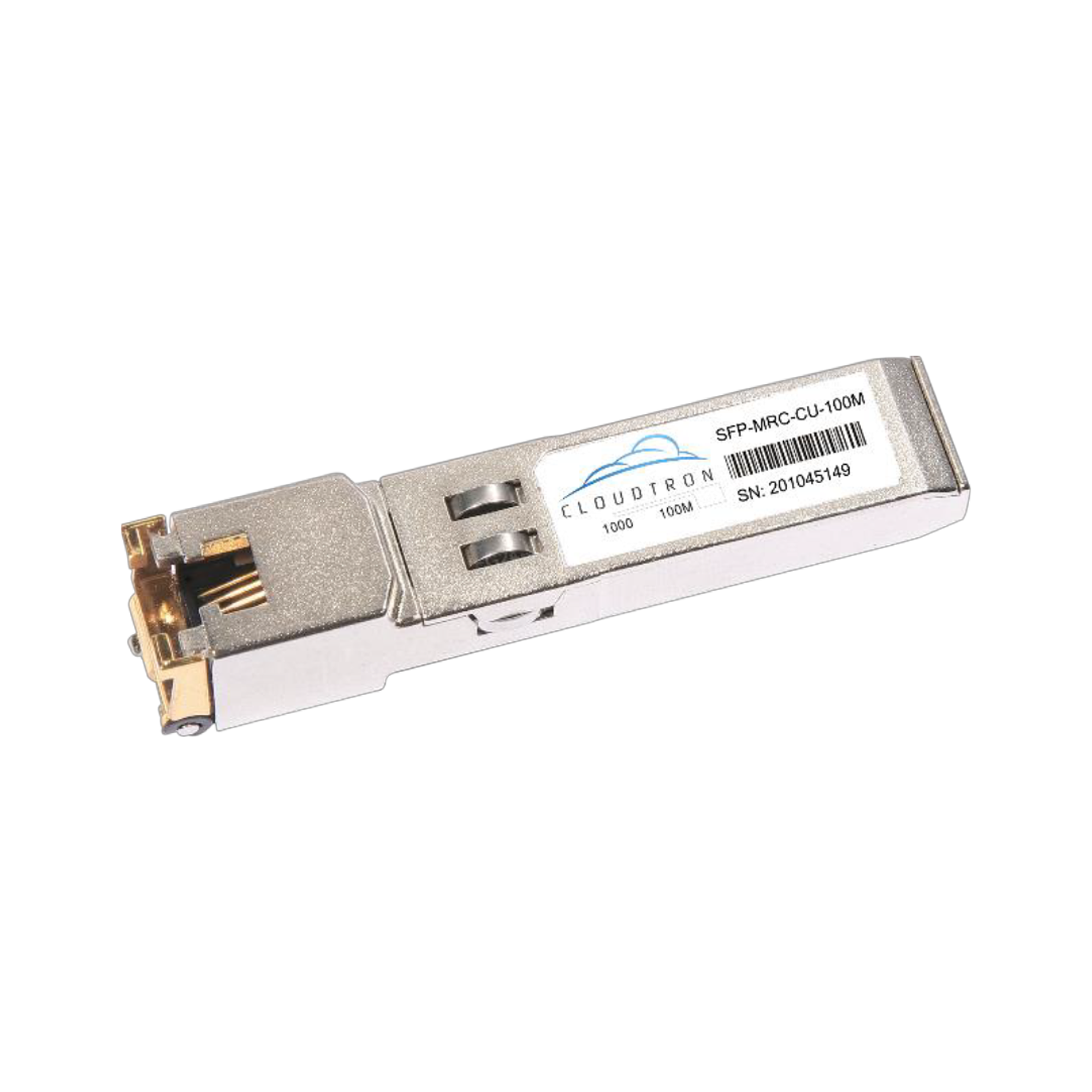

 Cloudtron SFP-MRC-CU-100M 1000BASE-T Copper Small Form Pluggable (SFP) transceivers are based on the SFP Multi Source Agreement (MSA). They are compatible with the Gigabit Ethernet and 1000BASE-T standards as specified in IEEE Std 802.3. The 1000BASE-T physical layer IC (PHY) can be accessed via I2C, allowing access to all PHY settings and features.

The SFP-MRC-CU-100M uses the RX_LOS pin for link indication, and 1000BASE-X auto-negotiation should be disabled on the host system.

Product Features

  • Up to 1.25 Gb/s bi-directional data links
  • Hot-pluggable SFP footprint
  • Low power dissipation (1.05W typical)
  • Compact RJ-45 connector assembly
  • Fully metal enclosure, for lower EMI
  • RoHS compliant and lead-free
  • Single +3.3V power supply
  • 1.25 Gigabit Ethernet over Cat 5 cable
  • Case operating temperature
    • Commercial: 0°C to +70°C
    • Industrial: -40°C to +85°C
