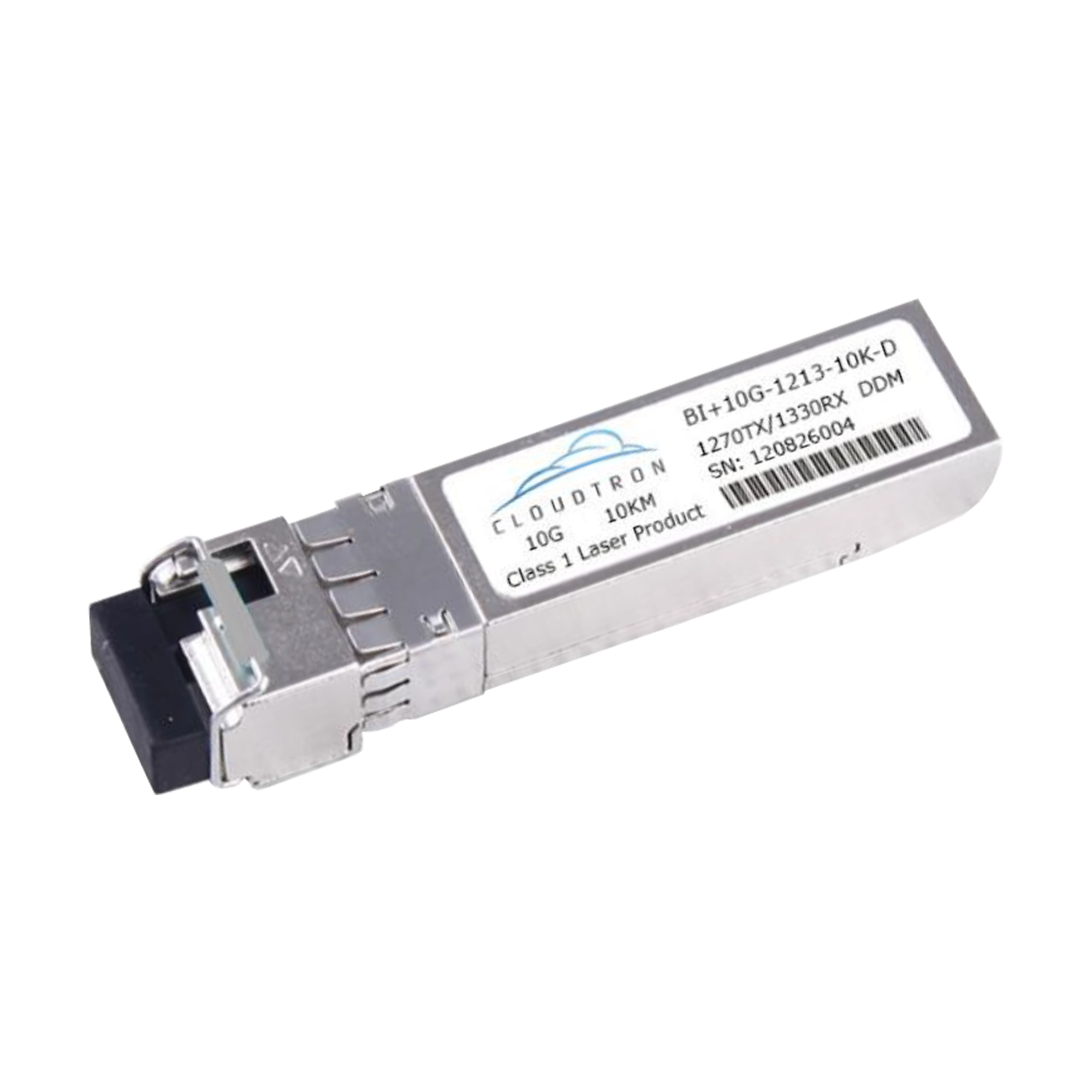

10Gb/s BIDI SFP+ 10km Transceiver

Product Description

BI+10G-1213-10K-D is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 10.7Gbps, it designed to be compliant with SFF-8472 and SFP+ MSA. The module data link up to10km in 9/125um single mode fibre. The optical output can be disabled by a LVTTL logic high-level input of Tx Disable. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner.

Product Features

  • Up to 10.7Gbps Data Links
  • Single Mode LC Receptacle
  • Up to 10km transmission on SMF
  • Power dissipation <1.2W
  • 1270nm DFB laser and PIN receiver
  • 2-wire interface with integrated Digital Diagnostic monitoring
  • EEPROM with Serial ID Functionality
  • Compliant with SFP+ MSA with LC connector
  • Single + 3.3V Power Supply and LVTTL Logic
  • Case operating temperature: -5 ºC ~+70ºC


  • 10GBASE-BX at 10.3125 Gb/s
  • 10GBASE-BX at 9.953 Gb/s


  • Compliant with SFF-8472 and SFP+ M.SA
  • Compliant to SFP+ SFF-8431 and SFF-8432.
  • Compliant to 802.3ae 10GBASE-LR
