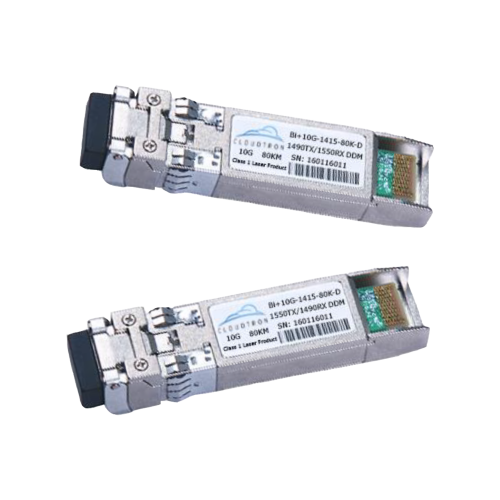

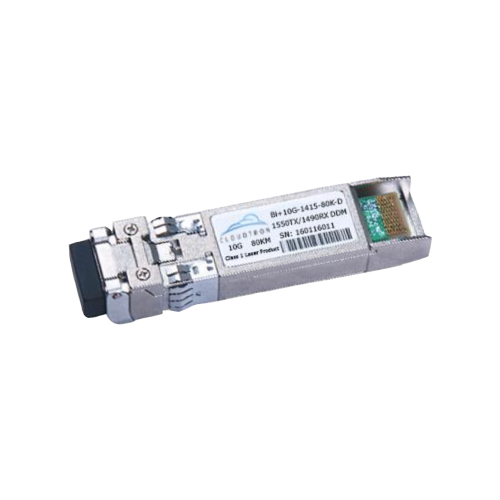

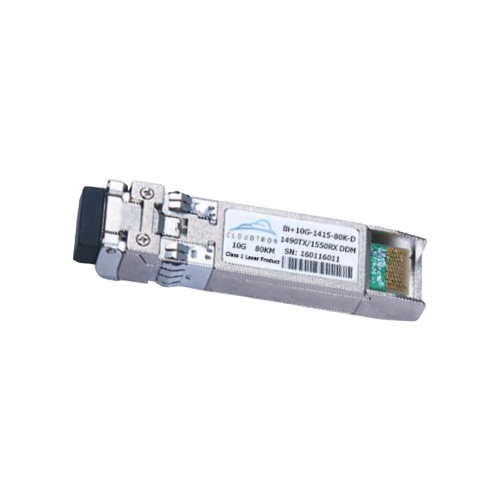

BI+ 10G-1415-80K-D (I)
BI+ 10G-1514-80K-D (I)
10Gb/s BIDI SFP+ 80km Transceiver
Product Description
BI+10G-1415-80K-D(I) is hot pluggable 3.3V Small-Form-Factor transceiver module. It designed expressly for high-speed communication applications that require rates up to 11.1Gb/s, it designed to be compliant with SFF-8472 SFP+ MSA. The module data link up to 80km in 9/125um single mode fibre.
Product Features
- Up to 11.1Gbps Data Links
- Up to 80km transmission on SMF
- EEPROM with Serial ID Functionality
- Hot-pluggable SFP+ footprint
- Compliant with SFP+ MSA with LC connector
- Single + 3.3V Power Supply
- 1490nm EML laser and APD receiver for BI+10G-1415-80K-D(I)
- 1550nm EML laser and APD receiver for BI+10G-1514-80K-D(I)
- 2-wire interface with integrated Digital Diagnostic monitoring
- Commercial/Industrial case operating temperature range: -10°C to 70°C /-40°C to 85°C
- Low power dissipation：
- BI+ 10G-1415-80K-D / BI+10G-1514-80K-D: 1.5W power dissipation for Commercial temperature
- BI+10G-1415-80K-DI / BI+10G-1514-80K-DI: 1.8W power dissipation for Industrial temperature
Applications
- 10GBASE-BX
Standard
- Compliant with SFF-8472
- Compliant to SFF-8431
- RoHS Compliant
Ordering Information
Product Part Number
Data Rate (Gbps)
Media
Wavelength (nm)
Transmission Distance (m)
Temperature Range (Tcase) (°C)
BI+ 10G-1415-80K-D
10.3125
Single mode fibre
1290 TX/ 1550 RX
80
-10~70
Commercial
BI+ 10G-1514-80K-D
10.3125
Single mode fibre
1550 TX/ 1290 RX
80
-10~70
Commercial
BI+ 10G-1415-80K-DI
10.3125
Single mode fibre
1290 TX/ 1550 RX
80
-40~85
Industrial
BI+ 10G-1514-80K-DI
10.3125
Single mode fibre
1550 TX/ 1290 RX
80
-40~85
Industrial
