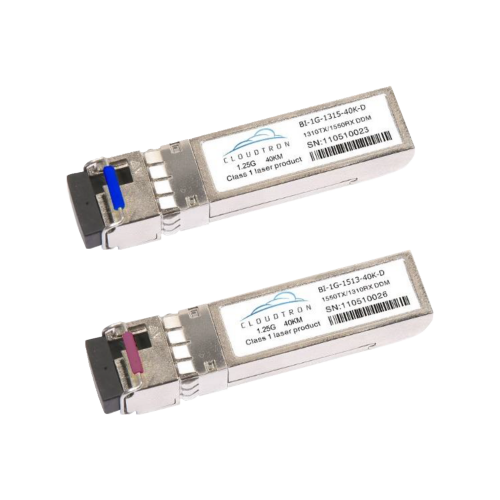

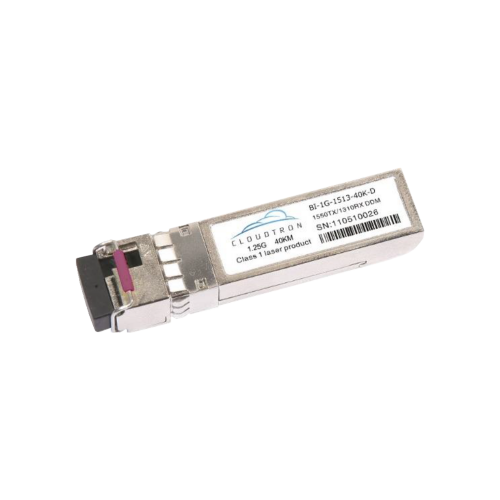

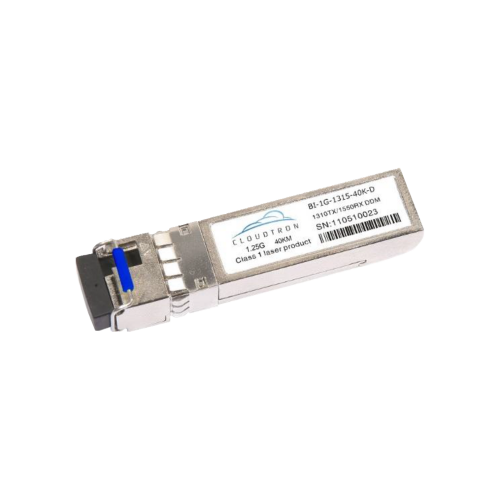

BI-1G-1315(1513)-40K-D
SFP BIDI 1.25G 1310/1550nm(1550/1310nm) DDM 40KM Transceiver
Product Description
Cloudtron BI-1G-1315(1513)-40K-D Small Form Factor Pluggable (SFP) transceivers are compatible with the Small Form Factor Pluggable Multi-Sourcing Agreement (MSA). The transceiver consists of five sections: the LD driver, the limiting amplifier, the digital diagnostic monitor, the 1310nm FP laser (the 1550nm DFB laser) and the PIN photo-detector. The module data link up to 40KM in 9/125um single mode fibre.
The optical output can be disabled by a TTL logic high-level input of Tx Disable, and the system also can disable the module via I2C. Tx Fault is provided to indicate that degradation of the laser. Loss of signal (LOS) output is provided to indicate the loss of an input optical signal of receiver or the link status with partner. The system can also get the LOS (or Link)/Disable/Fault information via I2C register access.
Product Features
- Up to 1.25Gb/s data links
- DFB laser transmitter
- PIN photo-detector
- Up to 40KM on 9/125μm SMF
- Hot-pluggable SFP footprint
- BIDI LC/UPC type pluggable optical interface
- Low power dissipation
- Metal enclosure, for lower EMI
- RoHS compliant and lead-free
- Single +3.3V power supply
- Support Digital Diagnostic Monitoring interface
- Compliant with SFF-8472
- Case operating temperature:
- Commercial: 0°C to +70°C
- Industrial: -40°C to +85°C
Applications
- Switch to Switch Interface
- Gigabit Ethernet
- Switched Backplane Applications
- Router/Server Interface
- Other Optical Links
Ordering Information
Product Part Number
Data Rate (Gbps)
Media
Wavelength (nm)
Transmission Distance (m)
Temperature Range (Tcase) (°C)
BI-1G-1315-40K-D
1.25
Single mode fibre
1310/1550 (1550/1310)
40
0~70
Commercial
BI-1G-1315-40K-DI
1.25
Single mode fibre
1310/1550 (1550/1310)
40
-40~85
Industrial
